Cable locator and acoustic fault detector Success ATP-434E
Success ATP-434E - locator for locating buried utilities and acoustic fault detector
Energizedcables
Success ATP-434E - locator for locating buried utilities and acoustic fault detector

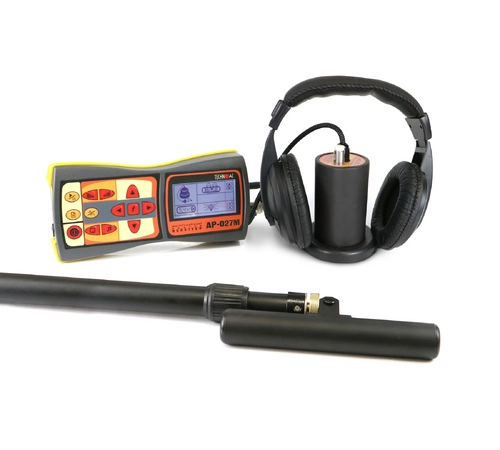

The set is based on the digital multifunctional receiver АР-027M with a large LCD display.
It locates cable fault.
Key features
- Frequency spectrum of the audio signal indication.
- Frequency filter bandwidth adjustment.
- Accidental acoustic noise protection.
LCDscreen
Utilitydetection
depth
Application of cable locator and acoustic fault detector Success ATP-434E
- Detection of energized cable lines underground up to 6 m depth by passive method.
- Cable fault location by electromagnetic and acoustic methods.
The set with defect smart detection algorithm, incl. searching for energized cables.
Features of AP-027M receiver
- Advanced digital location receiver.
- Large LCD display with switchable modes.
- Sound output to the built-in speaker and the operator's headphones.
- Vast range of supported frequencies (50 / 100 / 512 / 1024/ 8192 / 32768 Hz, WideBand 50…8600 Hz).
- Ability to connect an acoustic or electromagnetic sensor for different purposes.
- Enclosure protection class IP54 against external influences.
Cable locator and acoustic fault detector Success ATP-434E is recommended for application in the following industries
- Power systems.
Specifications of AP-027M receiver
| Parameter | Tracing | Leak detection |
|---|---|---|
| Type of accepted signal | Uninterrupted /pulse | Uninterrupted signal |
| Frequencies of the receiver’s filter | Central frequency of quasi-resonant filter 50…60 Hz, 100…450 Hz through 50 Hz, 120…540 Hz through 60 Hz, 512 Hz / 1024 Hz / 8192 Hz / 33 kHz | - Range limitation "below" 0,1 / 0,15 / 0,21 / 0,31 / 0,45 / 0,65 / 0,95 / 1, 38 kHz; - Range limitation "above" 2,00 / 1,38 / 0,95 / 0,65 / 0,45 / 0,31 / 0,21 / 0, 15 kHz |
| "Broadband" (operating mode) | 0,05…8,6 kHz | 0,09…2,20 kHz |
| Gain factor | 100 dB | |
| Visual indication | Liquid-crystal display-symbols and meaning of the chosen modes and parameters: - animated (moving) scale of the output signal level; - digital value and animated (moving) scale of the output signal level; - graphic (moving diagram) of the output signal level; - frequency content of the output signal level; - digital and graphic display of output signal levels kept in the "memory" |
|
| Sound indication | - Headphones natural broadband or filtered signal | |
| - Headphones-synthesized sound. Frequency modulation; - Built-in emitter - synthesized sound. Frequency modulation |
- | |
| Supply | - voltage 4...7 V; - alkaline batteries АА type 1,5 V (4 pcs.) |
|
| Time of continuous operation not less than | 20 hours | |
| Automatic shutdown when the device is not active | After 30 minutes of inactivity | |
| Ambient temperature | -20...+50°С | |
| Ingress protection rating | IP54 | |
| Weight of the electronic unit | 0,46 kg | |
| Receiver AP-027M dimensions | 220x102x42 mm | |
Basic set
| № | Name | Quantity |
|---|---|---|
| 1 | Receiver AP-027M | 1 pcs. |
| 2 | Acoustic sensor AD-227 | 1 pcs. |
| 3 | Electromagnetic sensor EMD-247 | 1 pcs. |
| 4 | Headphones | 1 pcs. |
| 5 | Operation manual | 1 pcs. |
Accessories
Compatible with the receivers АP-019, AP-027.
Compatible with the receivers АP-019, AP-027.
Compatible with the receivers АP-019 and AP-027.
Sensor is used for precise location of a single cable in a bunch of other cables.
Compatible with the receivers AP-019 and AP-027.
It is used for the selection of the cable from a bunch, for location of internal wiring and cable fault location.
Set of type AA rechargeable accumulators and chargers for AP-027.
