Water leak detector and pipe locator Success AG-435.15N
Receiver AP-027
Receiver AP-027
Receiver AP-027
Receiver AP-027
Transmitter АG-105
Transmitter АG-105
Transmitter АG-105
Acoustic sensor AD-227
Electromagnetic sensor EMD-247
Water leak detector and pipe locator Success AG-435.15N
Receiver AP-027
Receiver AP-027
Receiver AP-027
Receiver AP-027
Transmitter АG-105
Transmitter АG-105
Transmitter АG-105
Acoustic sensor AD-227
Electromagnetic sensor EMD-247

Water leak detector and pipe locator Success AG-435.15N

Water leak from pipelineWater
leak
from
pipeline
Energized cablesEnergized
cables
Non energized cablesNon
energized
cables
Metal pipelinesMetal
pipelines

The modern portable set for underground utilities location and water leaks detection.

Key features

  • Water leak detection and cable (and pipe) location using portable transmitter with output power up to 20 W.

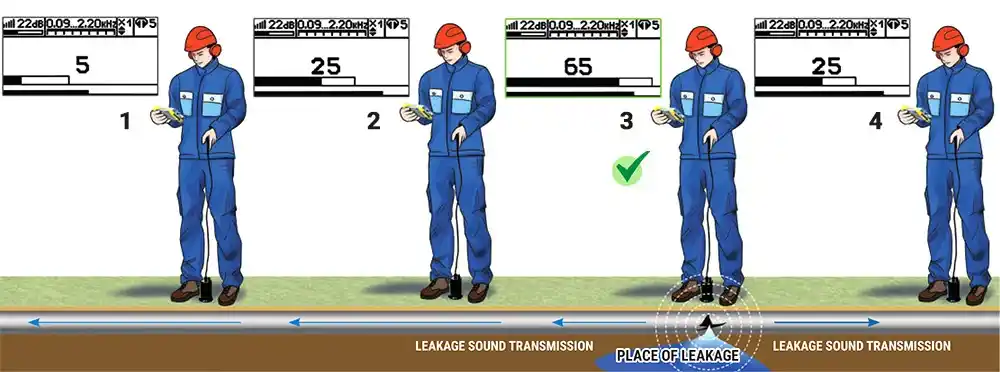

  • Acoustic noise visualization of the leak spectrum and frequency filter for accurate leak detection.
LCD screenLCD
screen
Utility detection depthLeak
detection
depth
Utility detection depthUtility
detection
depth
Tracing distanceTracing
distance
Categories: Water leak detection equipment
Request price

Features

Advanced acoustic leak detector, combined with powerful pipe locator set, perfect for plumbers and service companies.

  • Metal pipeline location underground up to 6 m.
  • Acoustic water leak detection from metal and non-metal pipelines underground up to 3 m depth.
  • AG-105 20 W transmitter.
  • Built-in inductive antenna.

Brief description

  • Receiver frequencies: 50 to 60 Hz / 100 to 120 Hz / 512 Hz / 1024 Hz / 8192 Hz / 33 kHz.
  • Transmitter frequencies: Hz - 512 - «0.5» / 1024 - «1.0» / 8192 - «8.2» / 32768 - «33».
  • Transmitter 20 W.
  • Storage of 31 signal level with a graph displayed.
  • Visual indication of the signal on the display: scale, graphic and spectrum.
  • Graphic visualization (moving chart) of sequence of measurements, max and min signal levels.
  • Sound indication.
  • Choice of bandwidth.
  • Two-segment indication of frequency spectrum (and “filtered”) signal.
  • Light weight.
  • Comfortable to wear for long terms.
  • LCD display.
  • Warranty 1 year.

Application

  • Water leak detection from metal or non-metal pipelines underground up to 3 m depth.
  • Water leak detection inside the house.
  • detection of any metal pipelines underground up to 6 m depth.
  • Area survey before excavation (BB mode).
  • Tracing of metal utilities at distance up to 3 km.

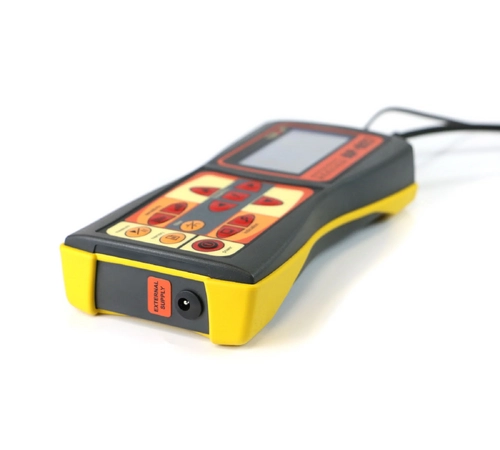

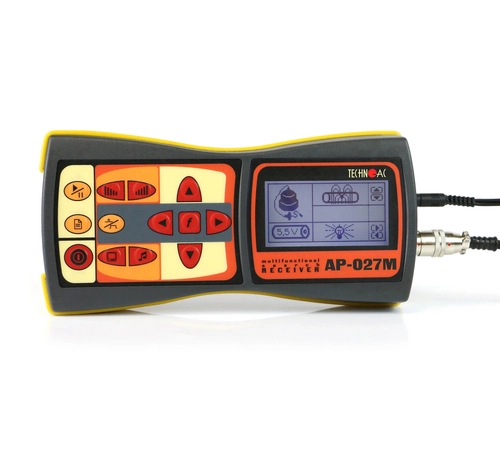

Specifications receiver AP-027

Parameter Tracing Leak detection
Type of accepted signal Continious /pulse Continious signal
Frequencies of the receiver’s filter Central frequency of quasi-resonant filter 50 to 60 Hz, 100 to 450 Hz through 50 Hz, 120 to 540 Hz through 60 Hz, 512 Hz / 1024 Hz / 8192 Hz / 33 kHz - Range limitation "below" 0,1 / 0,15 / 0,21 / 0,31 / 0,45 / 0,65 / 0,95 / 1,38 kHz;
- Range limitation "above" 2,00 / 1,38 / 0,95 / 0,65 / 0,45 / 0,31 / 0,21 / 0,15 kHz
«Broadband», (operating mode) 0,05 to 8,6 kHz 0,09 to 2,20 kHz
Gain factor 100 dB 120 dB
Visual indication Liquid-crystal display-symbols and meaning of the chosen modes and parameters:
- animated (moving) scale of the output signal level;
- digital value and animated (moving) scale of the output signal level;
- graphic (moving diagram) of the output signal level - frequency content of the output signal level;
- digital and graphic display of output signal levels kept in the "memory"
Sound indication Headphones natural broadband or filtered signal
Headphones-synthesized sound. Frequency modulation -
Built-in emitter - synthesized sound. Frequency modulation -
Supply Voltage 4…7 V - alkaline batteries АА type 1,5 V (4 pcs.)
Time of continuous operation not less than 20 hours
Ambient temperature -20°С to +50°С
Ingress protection rating IP54
Receiver AP-027 dimensions 220x102x42 mm
Weight of the electronic unit 0,46 kg

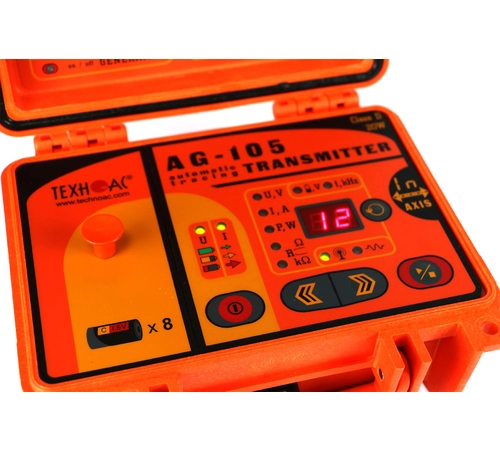

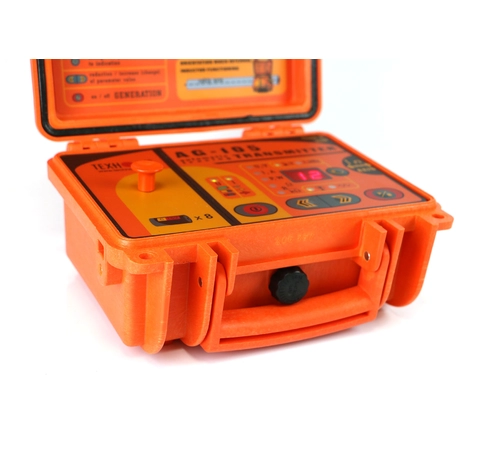

Specifications transmitter AG-105

Parameter Value
The frequencies of the continuous «Co» or pulse «Pu» signal, Hz ± 0,1% - «kHz»
Load «clips» or «clamp» 512 - «0.5» / 1024 - «1.0» / 8192 - «8.2» / 32768 - «33»
«Antenna» modes 8192 - «8.2» / 32768 - «33»
Operating modes
«Antenna» modes Internal transmitting inductor «In»
External induction transmitting antenna «An»
«Modulation» modes (special form signal) - Pulse «Pu» (short-term transmissions of the sine signals);
- Transmission duration 0,12 sec.;
- Transmissions repetition frequency 1 Hz
- Dual-frequency «2F» (simultaneous frequency generation 1024 Hz, 8192 Hz);
- Amplitudes ratio 4/1 (respectively)
Output parameters under power supply voltage 12…15 V
Output current, А
Restricted by the program under manual increment, ≥ 5 - at frequency 512 Hz «0.5» / 1024 Hz «1.0» / 8192 Hz «8.2» / «2F»
3 - at frequency 32768 Hz «33»
Set by the program for automatic adjustment with the external load of «clips» or «clamp», ≥ 0,2 - at frequency 512 Hz «0.5» / 1024 Hz «1.0» / «2F»
0,1 - at frequency 8192 Hz «8.2» / 32768 Hz «33»
Maximum output voltage, V
Depending on «modulation», ≥ 32 - in the dual-frequency modulation mode «2F»
40 - in other modes
Maximum output power, W
Restricted by the program, ≥ 20 - in the continuous «Co» and pulse «Pu» modes at frequencies 512 Hz «0.5» / 1024 Hz «1.0» / 8192 Hz «8.2» at load resistance up to 80 Ω In dual-frequency mode «2F» at load resistance up to 50 Ω
6 - at frequency 32768 Hz «33» at load resistance up to 260 Ω
Power supply sources
Operating range of the supply voltages Minimally acceptable voltage for oscillation start-up - 7 V
Maximum allowed voltage for operation - 15 V
Automatic shutdown voltage in the “oscillation” mode < 4,2 V
Battery set 8 «alkaline» cells 1,5 V «type С» (recommended – «Duracell ® ULTRA»)
External power supply sources (optional) - Battery «12 V» (e.g. automotive);
- Output voltage 11…14 V, maximum current not less than 4 А
- Mains power supply adapter АG114М.02.020 (extra accessory based on GS60A15-P1J «MEAN WELL»);
- Output voltage 15 V, power 60 W
Operating time («life cycle») While in operation of the battery set «type Сх8» is defined by the quality (capacity and «load capability») of the applied alkaline cells and can be equal to from 4 to 6 hours in the «Co» и «2F» modes or from 20 to 30 hours in the «Pu» mode at initial output voltage 7 W in «continuous» modes «Co» / «2F» or at initial output voltage 15 W in pulse modulation mode «Pu»
Under the external power supply is fully conditioned by this external energy source characteristics therefore under mains supply operating time is unlimited

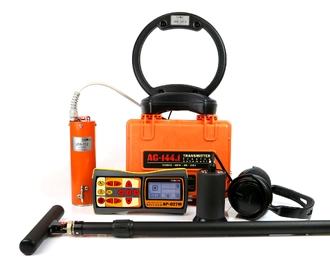

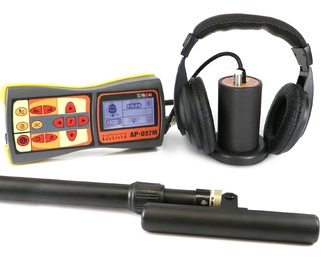

Standard set

№ Name
1 Receiver AP-027
2 Acoustic sensor AD-227
3 Carrying rod for AD-227
4 Extension carrying rod for AD-227
5 Contact rods for AD-227
6 Magnet for AD-227

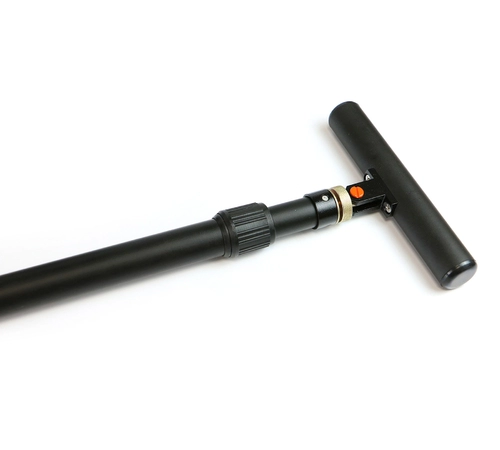

7 Electromagnetic sensor EMD-247
8 Holder for AP-027

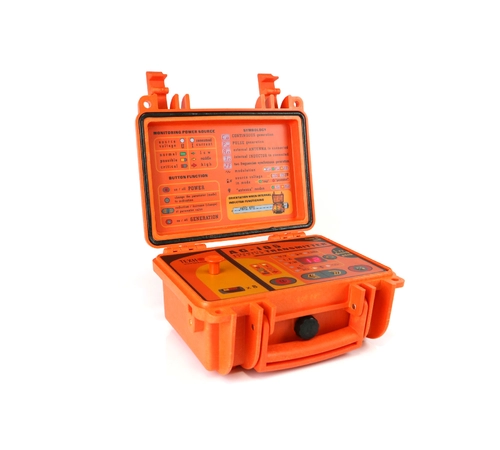

9 Transmitter АG-105
10 Headphones
11 Screwdriver
12 Power connection cable AG120.02.080
13 External power supply cable AG120.02.070
14 Grounding rod
15 Contact magnetic
16 Manual and passport
17 Set carrying bag
18 EMD carrying bag
