Success CBI-436N - underground live cable locator
Energizedcables
Success CBI-436N - underground live cable locator

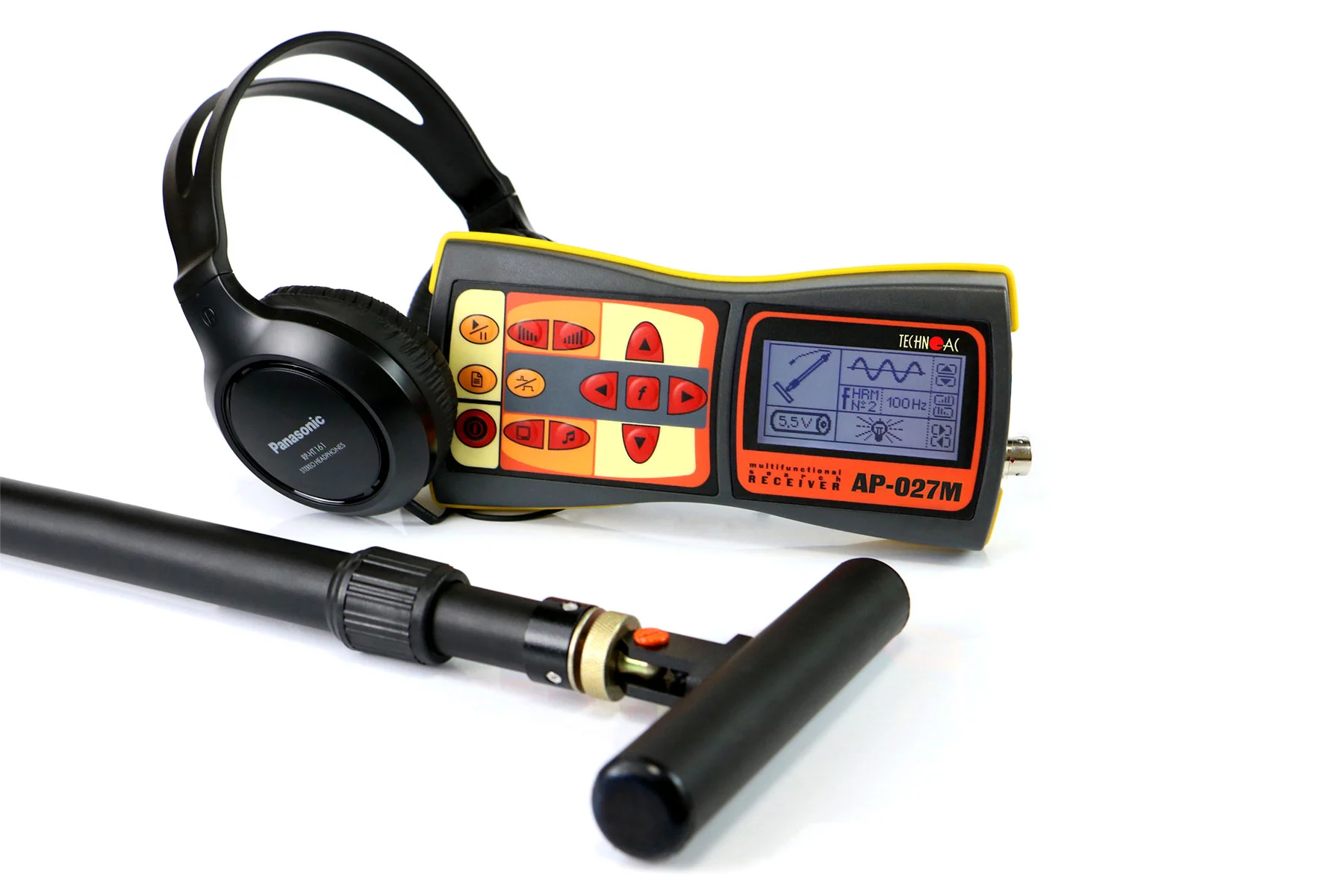

The set is based on the digital multifunctional receiver АР-027 with a large LCD display and the electromagnetic sensor.
It locates the cable in passive mode.
Key features
- The ability to locate energized cables at a depth up to 6 meters.
- The ability to measure the depth of the cable using indirect method.
- Advanced visual indication.
LCDscreen
Utilitydetection
depth
Description of underground live cable locator Success CBI-436N
Digital multifunctional locator with a large LCD display and sound output to the built-in speaker and the operator's headphones.
Water leak / cable flaw detector function (with optional acoustic sensor).
Application of underground live cable locator Success CBI-436N
- Location of energized cables.
- Detection of intersections of the pipeline and cable.
- Location of utilities at depth up to 6 meters.
- Survey the ground before the excavation works.
Features of AP-027 receiver
- Advanced digital location receiver.
- Large LCD display with switchable modes.
- Sound output to the built-in speaker and the operator's headphones.
- Vast range of supported frequencies (50 / 100 / 512 / 1024/ 8192 / 32768 Hz, WideBand 50…8600Hz).
- Ability to connect an acoustic sensor (water leak detector / cable flaw detector functions).
- Enclosure protection class IP54 against external influences.
AP-027 operation for utilities tracing
Move to the supposed utility location - an energized cable or a pipe. During the operation there will be information on the screen and sound in the headphones.
- The signal is low on the screen and in the headphones, it means the utility is far away from the operator.
- The closer to the utility the higher is the signal on the screen and the louder is the sound in the headphones.
- The operator is above the utility, the signal is maximum.
- The signal is less, it means the leakage was behind.
Underground live cable locator Success CBI-436N is recommended for application in the following industries
- Power.
- Telecommunication.
- Construction.
- Public utilities.
- Heat and water supply.
Specifications of AP-027 receiver
| Parameter | Tracing | Leak detection |
|---|---|---|
| Type of accepted signal | Uninterrupted /pulse | Uninterrupted signal |
| Frequencies of the receiver’s filter | Central frequency of quasi-resonant filter 50…60 Hz, 100…450 Hz through 50 Hz, 120…540 Hz through 60 Hz, 512 Hz / 1024 Hz / 8192 Hz / 33 kHz | - Range limitation "below" 0,1 / 0,15 / 0,21 / 0,31 / 0,45 / 0,65 / 0,95 / 1, 38 kHz; - Range limitation "above" 2,00 / 1,38 / 0,95 / 0,65 / 0,45 / 0,31 / 0,21 / 0, 15 kHz |
| "Broadband" (operating mode) | 0,05…8,6 kHz | 0,09…2,20 kHz |
| Gain factor | 100 dB | |
| Visual indication | Liquid-crystal display-symbols and meaning of the chosen modes and parameters: - animated (moving) scale of the output signal level; - digital value and animated (moving) scale of the output signal level; - graphic (moving diagram) of the output signal level; - frequency content of the output signal level; - digital and graphic display of output signal levels kept in the "memory" |
|
| Sound indication | - Headphones natural broadband or filtered signal | |
| - Headphones-synthesized sound. Frequency modulation; - Built-in emitter - synthesized sound. Frequency modulation |
- | |
| Supply | - voltage 4...7 V; - alkaline batteries АА type 1,5 V (4 pcs.) |
|
| Time of continuous operation not less than | 20 hours | |
| Automatic shutdown when the device is not active | After 30 minutes of inactivity | |
| Ambient temperature | -20...+50°С | |
| Ingress protection rating | IP54 | |
| Weight of the electronic unit | 0,46 kg | |
| Receiver AP-027 dimensions | 220x102x42 mm | |
Basic set
| № | Name | Quantity |
|---|---|---|
| 1 | Receiver АP-027 | 1 pcs. |
| 2 | Electromagnetic sensor EMD-247 | 1 pcs. |
| 3 | Headphones | 1 pcs. |
| 4 | Operation manual | 1 pcs. |
Accessories
Compatible with the receivers АP-019, AP-027.
Compatible with the receivers АP-019, AP-027.
Compatible with the receivers АP-019 and AP-027.
Sensor is used for precise location of a single cable in a bunch of other cables.
Used for pipeline leak detection in hard-to-reach places and for isolation valves diagnostics.
Compatible with the receivers AP-019 and AP-027.
It is used for the selection of the cable from a bunch, for location of internal wiring and cable fault location.
Set of type AA rechargeable accumulators and chargers for AP-027.
